Steel Containers

Design – Technical Project approved by Customer before manufacturing – Manufacturing – Delivery – 24-month warranty service

Up to 15m long metal containers made from scratch. Metal profile from S235 material and 2mm thick metal sheets, which are sand blasted and painted according to standard C3 system. Insulation 50mm PAROC, metallic perforated sheet for interior (walls, ceiling), ISO cubes for lifting. Anti – Slip metal floor with 100mm fuel leakage protection. Regular metal doors with ASSA components and emergency opener, step by the entrance, rain roof over doors, removable roof, drainage pipes, openable and lockable gate at the end of the container, FAT.























Available options



C4/C5 painting systems;

E60 fireproof doors;

Ventilation;

Air conditioning;

Slope;

Sound dampers;

Exhaust system;

Heating;

Cable ladders;

Electrical installation;

Led lighting;

Double doors;

Extra reinforcements;

Cable glands;

Middle walls;

Data center floors;

Installation of the equipment (UPS, Gensets, Control Panels).



Sandwich containers

Sandwich panel containers made from scratch. Metal profile from SHS 100*100 material which is sand blasted and painted according to standard C3 system. Assembled with 50mm insulated sandwich panels, prepared and RAL painted at factory. Gable roof made from special insulated sandwich panel. Metal ISO cubes for lifting. Metal floor with fuel leakage protection (if necessary). Regular metal doors with ASSA components, step by the entrance, additional openings for ventilation, cable input/output, exhaust system, fuel filling systems.





Application:

Adjustable dimensions, controlled inside environment, high efficiency, light weight and urban design allows these types of containers to be used in many applications.

Available options

C4/C5 painting systems;

E60 fireproof doors;

Ventilation;

Air conditioning;

Sound dampers;

Exhaust system;

Heating;

Cable ladders;

Electrical installation;

Electrical installation;

Led lighting;

Double doors;

Extra reinforcements;

Cable glands;

Middle walls;

Data center floors;

Installation of the equipment (UPS, Gensets, Control Panels).

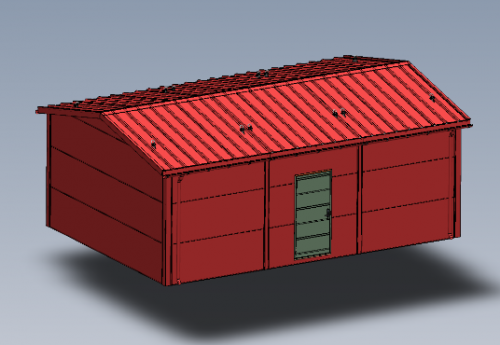

Pre-fabricated modular substations

Modular substation buildings are pre-fabricated and delivered as a ready to install solution. Save time and costs, modularity allows our customers to do the majority of the installation works at base workshop. Visit construction site only to finalize the project. Lifting mechanism, reliable construction and module dimensions allows to transport them with ease.



Available options

Substations, Switchgear equipment, Distribution Centers, Data Centers

100mm panels + 150mm floor insulation;

RAL according to needs;

Each module can be adjusted (openings, windows, doors, A/C module);

Roof and drainage pipes;

Easy to connect modules;

Hided connection points in the floor;

Raised floor as an option;

Electricity, light, heating as an option.





We provide

  • Safe delivery to any location.
  • Individual approach to our customers.
  • Payment terms upon agreement.
  • Sales and after-sales support.
